3DGENCE

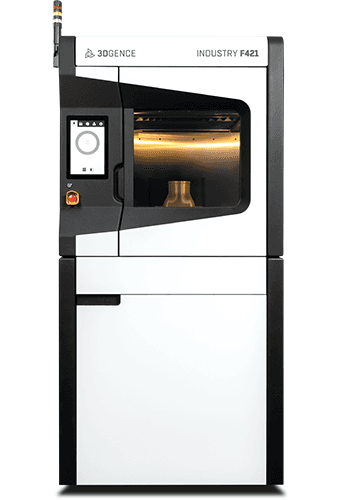

Industry F421

A large-format dual-extrusion FFF system for demanding industrial applications where speed, accuracy, process safety, and high-performance materials are essential. Interchangeable modules and a 195°C actively heated chamber enable end-use parts in engineering thermoplastics and composites, including PEEK, PEKK, and ULTEM™.

View official product page ↗

Technical specifications

Print technology: FFF
Build volume: 380 × 380 × 420 mm
Minimum layer height: 50 µm
Printheads: 2, with printhead purging system
Filament diameter: 1.75 mm
Maximum printhead temperature: 500°C
Maximum build-plate temperature: 180°C
Maximum chamber temperature: 195°C, actively heated
Filament-chamber temperature: 50°C
Travel and print speed: 1,000 mm/s travel; up to 400 mm/s printing
Power: 230 V; 4,600 W maximum, 1,500 W average draw
Connectivity: Ethernet, Wi-Fi, USB drive
Software: 3DGence SLICER 4.0 and 3DGence CONNECT™
UPS: Optional
